V Blender Dry Powder Mixer Blending Machine

The V-50/100/200/300 ensures efficient, uniform mixing of powders and granules, ideal for pharmaceuticals, chemicals, and food industries.

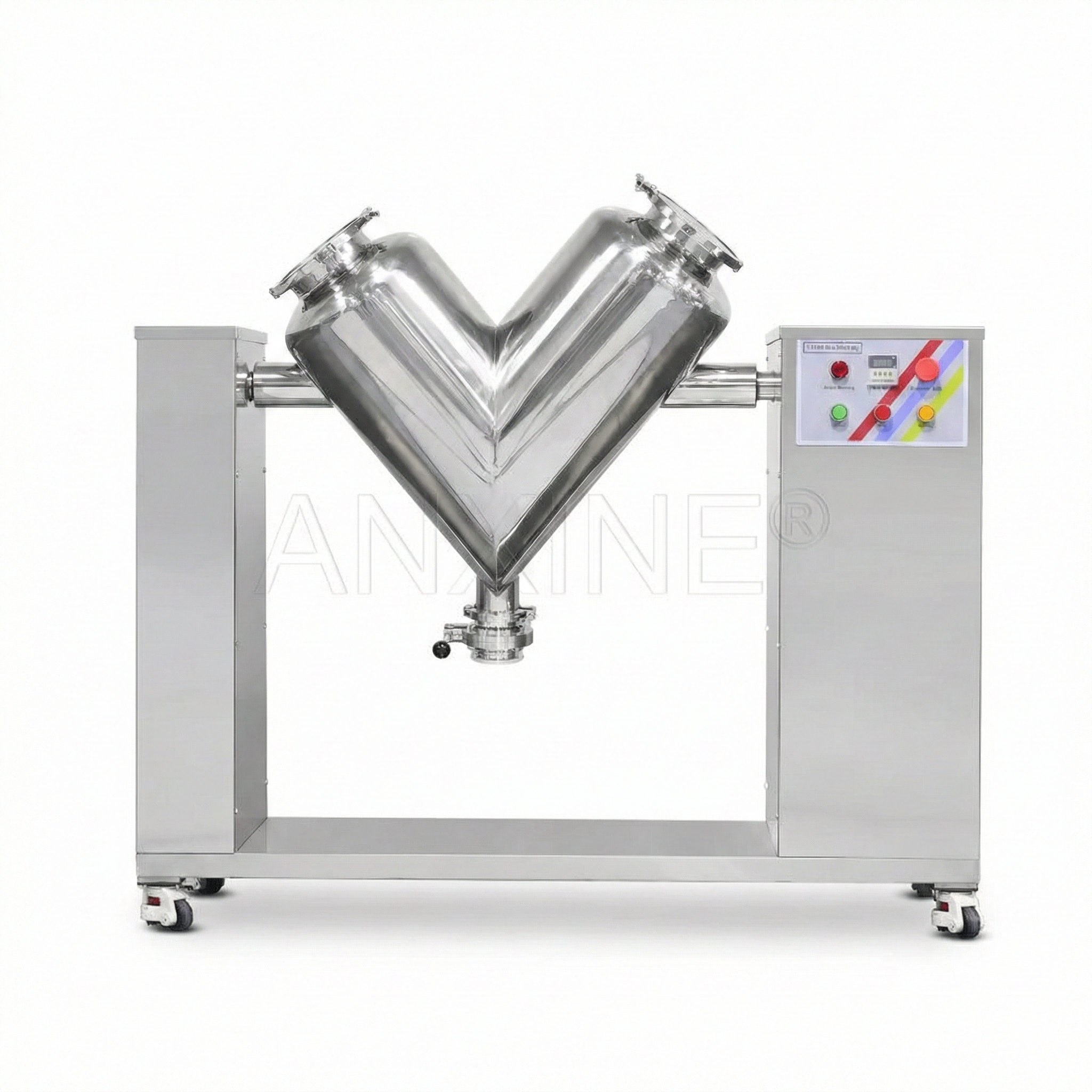

V Blender Dry Powder Mixer Blending Machine V50 - V300

The V series high-efficiency dry powder mixer is designed for the pharmaceutical, chemical and food industries, covering a variety of needs from small laboratory batches to industrial large-scale production. This series of products has a simple structure, convenient operation and beautiful appearance. All parts that come into direct contact with the material are made of stainless steel that meets cGMP standards, ensuring the hygiene and safety of the product. Different models are equipped with V-shaped cylinders of various capacities, supporting the mixing of various types of dry powders and granular materials, and are particularly suitable for applications that require high-precision mixing.

The V Blender Dry Powder Mixer is designed for efficient mixing of powders and granules, making it ideal for the pharmaceuticals, chemical, and food industries.

Highlighted Features

  • V-shaped barrel: The unique V-shaped design allows the material to fully roll in the barrel, ensuring that there is no residue and dead corner, providing a better mixing effect.
  • Adjustable speed: Users can adjust the rotation speed of the V-shaped barrel according to different material characteristics and mixing requirements to achieve the best mixing state.
  • Ease of use: Equipped with an intuitive operation panel, operations such as start, pause, and cycle number setting can be completed through simple button control.

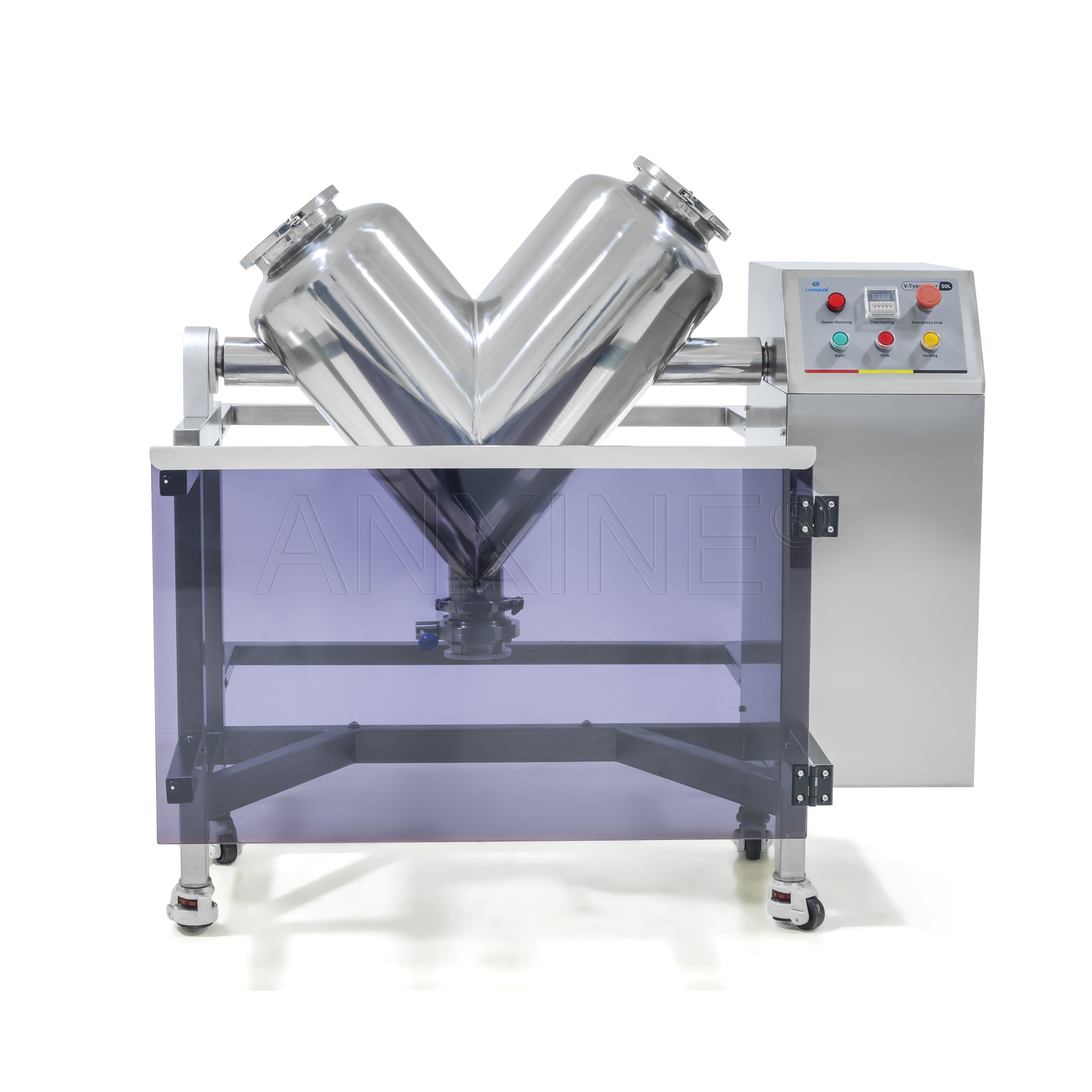

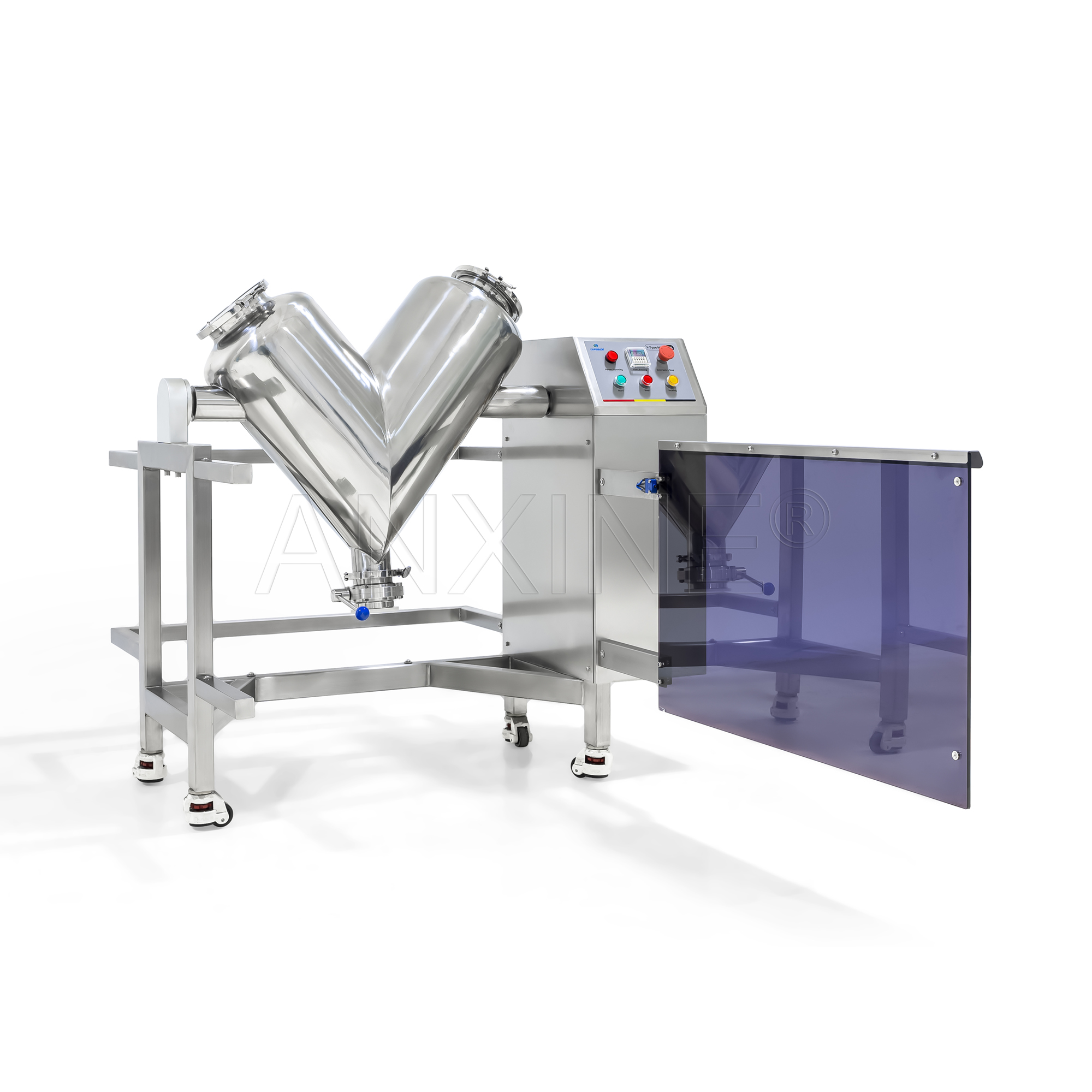

  • Safety protection: When the protective cover is not closed, the equipment will not be able to start, ensuring the safety of the operator; at the same time, the V-shaped barrel needs to be disassembled and cleaned after each use to prevent cross contamination.
  • Working principle: The side or right side is equipped with a motor and a reducer, and the power is transmitted to the reducer through a belt drive, and then the coupling drives the V-shaped mixing barrel to operate, so that the powder is mixed back and forth in all directions in the barrel.



Model V-50 V-50 Pro V-100 V-200 V-300
Volume 50L 50L 100L 200L 300L
Max. Filling Capacity 20L 20L 40L 80L 12L
Rotational Speed 20r/min 36r/min 15r/min 12r/min 12r/min
Dia. Of Inlet Φ150mm Φ150mm Φ250mm Φ300mm Φ300mm
Dia. Of Outlet Φ80mm Φ80mm Φ100mm Φ100mm Φ100mm
Power 0.75KW 0.75kW 1.1KW 1.5KW 1.5KW
Machine Weight 47kg 200kg 190kg 190kg 380kg
Dimensions 350x450x1160mm 1320x1120x1100mm 1570x650x1500mm 2010x850x1440mm 1950x700x1650mm
