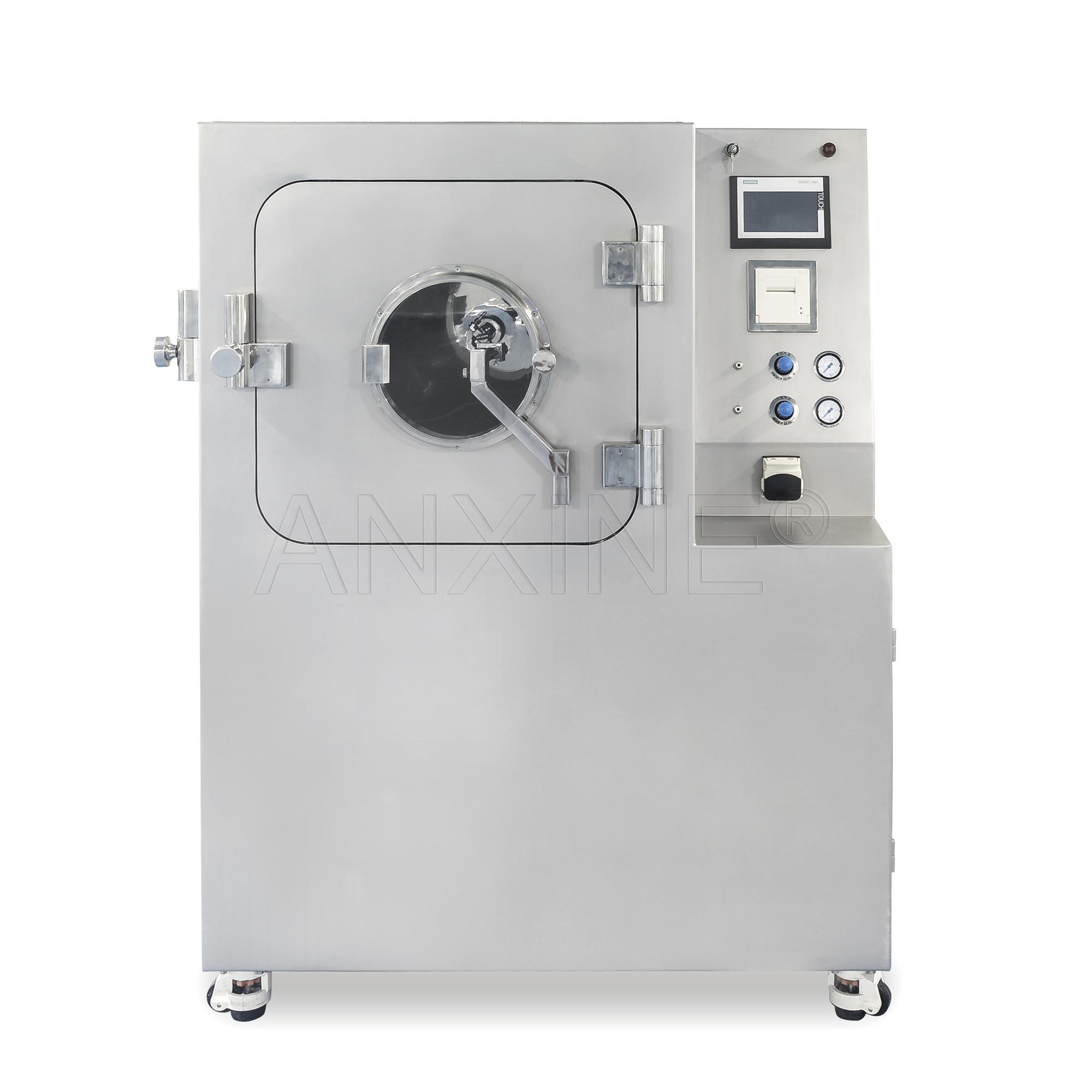

Efficient Coating Machine ATC Pro
Efficient Coating Machine ATC Pro

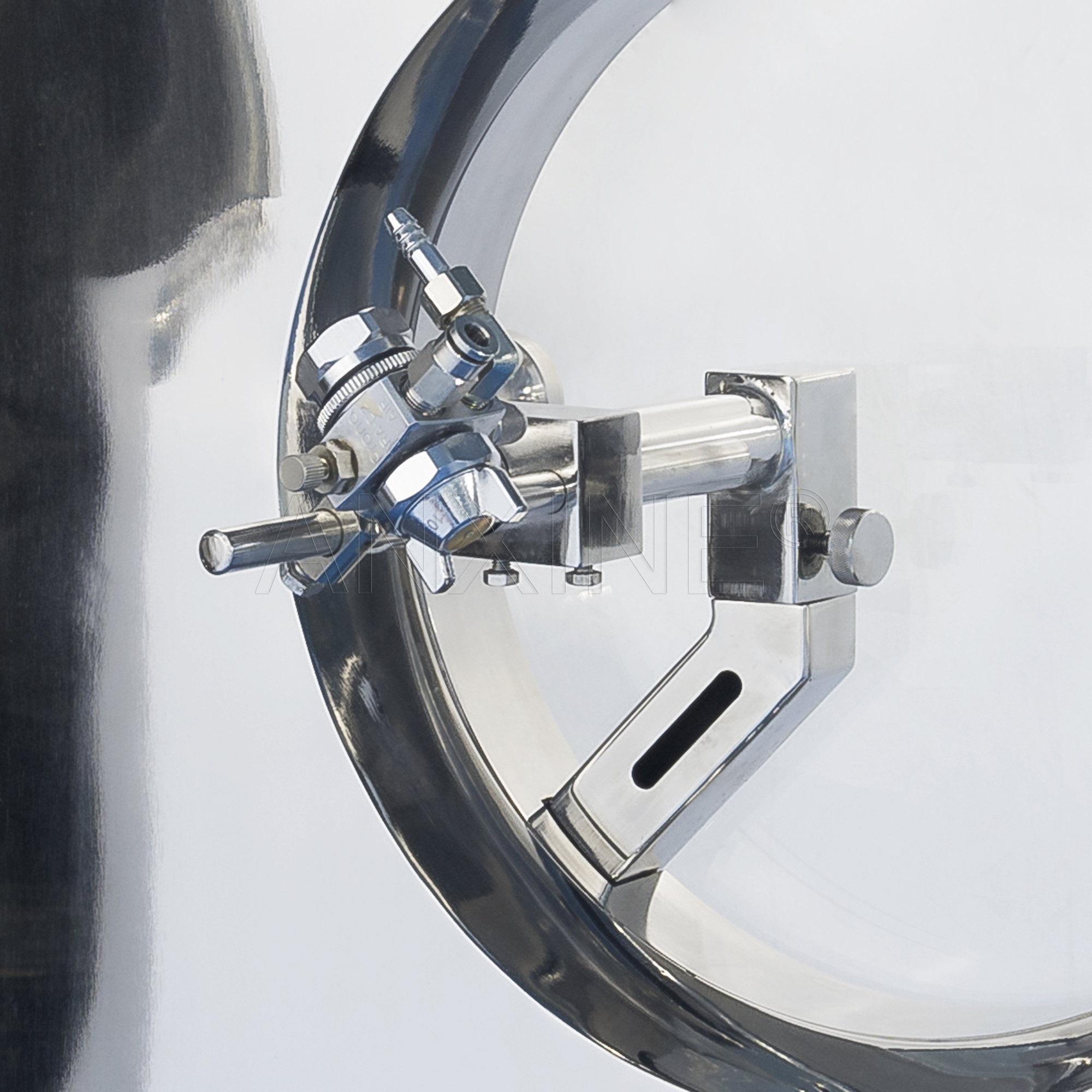

The Efficient Coating Machine is specialized pharmaceutical equipment widely used for applying water-phase and organic film coatings on Chinese and Western tablets, pills, and similar products. Designed in strict accordance with GMP standards, this machine features stainless steel construction for all components in contact with pharmaceuticals, including coating rollers, fans, and spray devices.
Controlled by a PLC programmable system, it offers both manual and automatic operation modes, with parameters displayed on an intuitive touchscreen interface. The entire coating operation is conducted in a closed environment to prevent dust and spatter, ensuring a clean process.
The Efficient Coating Machine ATC Pro is a state-of-the-art pharmaceutical device designed for applying water-phase and organic film coatings to tablets and pills. It is widely used in both Chinese and Western medicine production. This machine is engineered to meet GMP standards, ensuring high-quality, hygienic, and efficient operation.
Highlighted Features
- GMP Compliance: Built to meet pharmaceutical industry standards for hygiene and safety.
- PLC Controlled: Offers precise control over the coating process with both manual and automatic options.
- Energy Efficient: Designed to optimize energy use while delivering high-quality coatings.
- Compact Design: Requires minimal floor space and simplifies integration into existing production lines.

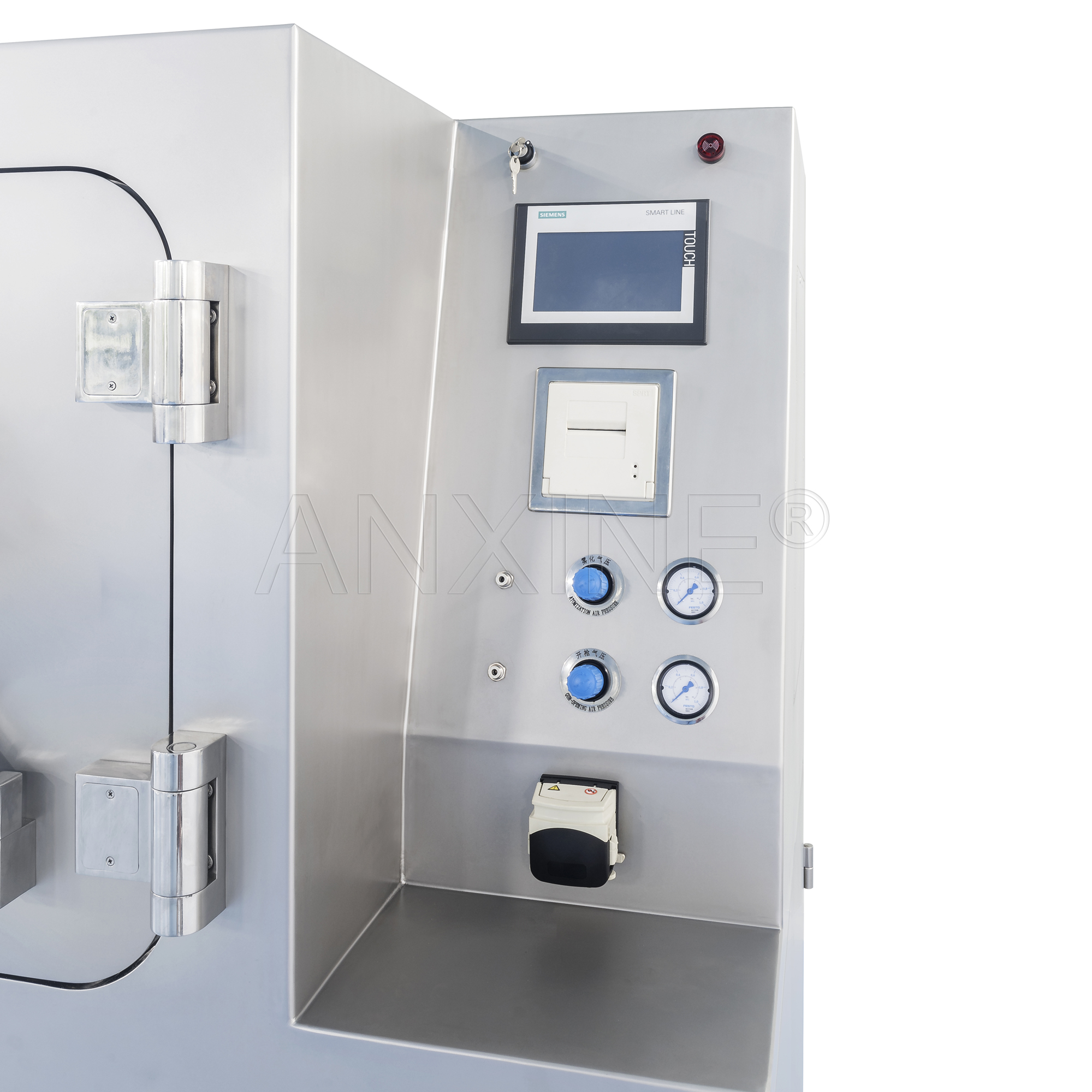

- User-Friendly Operation: Touchscreen interface for easy monitoring and adjustment of control parameters.
- Hygienic Construction: All contact parts are made from stainless steel, ensuring durability and pharmaceutical compliance.
| Model | ATC Pro-5 |
|---|---|
| Coating Roller Capacity | Ф300/1L, Ф380/3L, Ф480/5L |
| Rotate Speed | 0-30 rpm |
| Exhaust Fan Flow | 2500 m³/h |
| Air Heater Flow | 504 m³/h |
| Temperature Range | Max. 80℃ |
| Main Motor | 0.37 kW |
| Dimensions | 1250x900x1700 mm |
| Weight | 750 kg |
