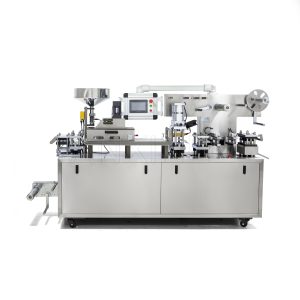

Blister Packing Machine DPP-140
Blister Packing Machine for Diverse Pharmaceutical Needs DPP-140
The DPP-140 utilizes a flat heating plate system to uniformly heat PVC sheets to around 105°C for optimal forming. This comprehensive machine performs multiple functions including heat sealing, batch number printing, creasing, and more. It features variable frequency stepless speed regulation, achieving a punching frequency of 10 to 55 times per minute. The flexible spiral rod drive allows easy adjustment of packaging sizes, while the PLC-controlled pneumatic roller traction ensures precise operation.
Description
The DPP-140 Blister Packing Machine is a versatile, flat-type aluminum-plastic packaging solution designed for a wide range of pharmaceuticals. Its advanced features make it ideal for packaging capsules, tablets, sugar-coated tablets, honey pills, injections, and ampoules with precision and efficiency.
Highlighted Features
- Uniform Heating: Flat heating method ensures consistent PVC material heating.
- Adjustable Speed: Variable frequency control meets diverse production demands.
- Flexible Packaging: Easily adjustable screw drive supports varying sheet sizes.
- Precision Control: Pneumatic roller traction system enhances accuracy and efficiency via PLC.
- Easy Mold Replacement: Positive pressure forming and heat sealing molds are simple to exchange.
- High Filling Rate: Achieves over 99.5% filling efficiency with a universal feeder.
- Compact Design: Lightweight structure facilitates easy transport and maintenance.
Specifications
| Model | DPP-140 |
|---|---|
| Cutting Frequency | 10-50 times/min |
| Capacity | 7200 strips/hour |
| Max Shaping Areas and Depth | 140x120x28 mm |
| Air Pressure | 0.4-0.6 Mpa |
| Power Supply | 380V/220V 50Hz |
| PVC Hard Pieces | 0.15-0.5×140 mm |
| PTP Aluminum Foil | 0.02-0.035×140 mm |
| Dialysis Paper | 50-100g×140 mm |
| Mould Cooling | Tap or back water |
| Dimensions | 2050×526×1320 mm |
| Weight | 960 kg |
