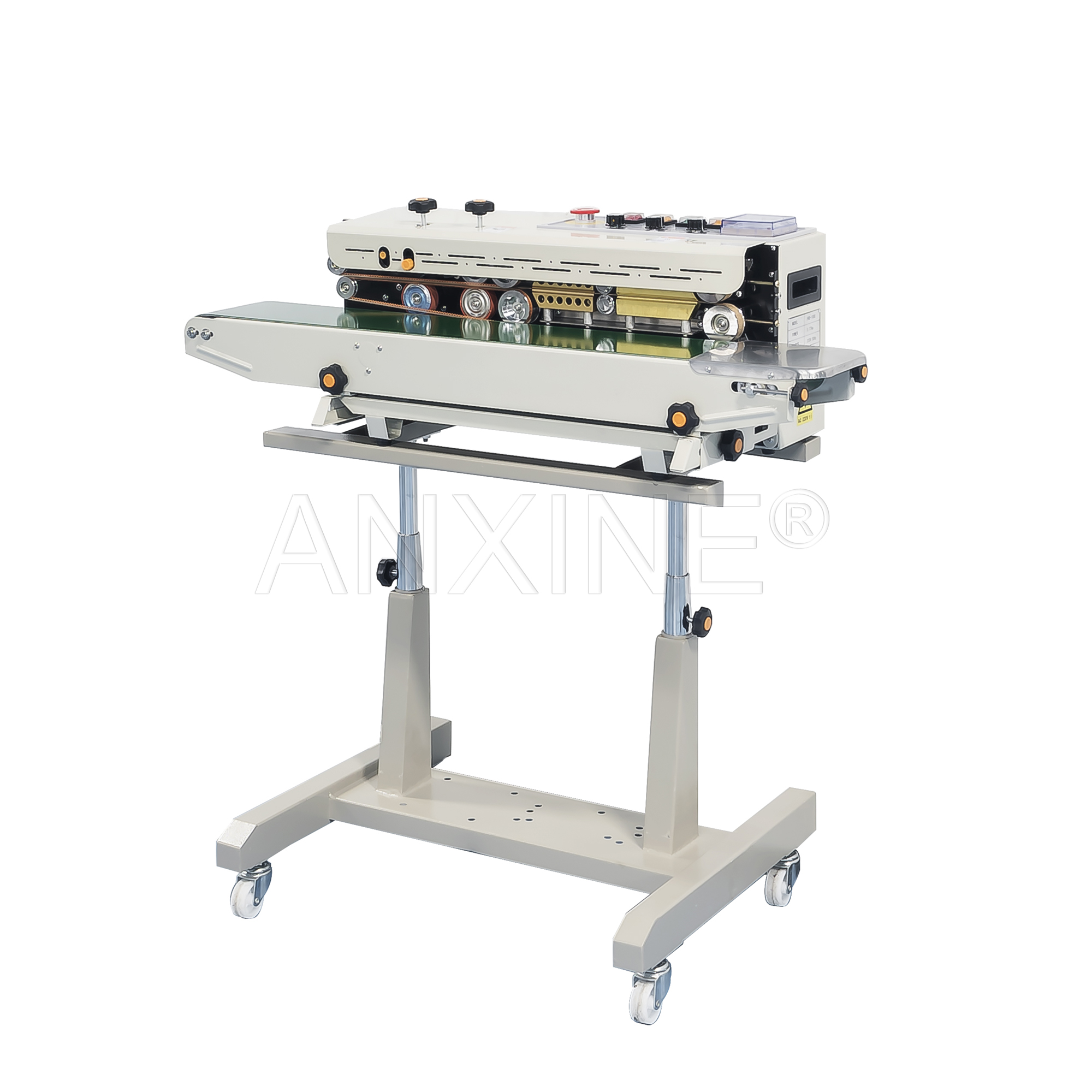

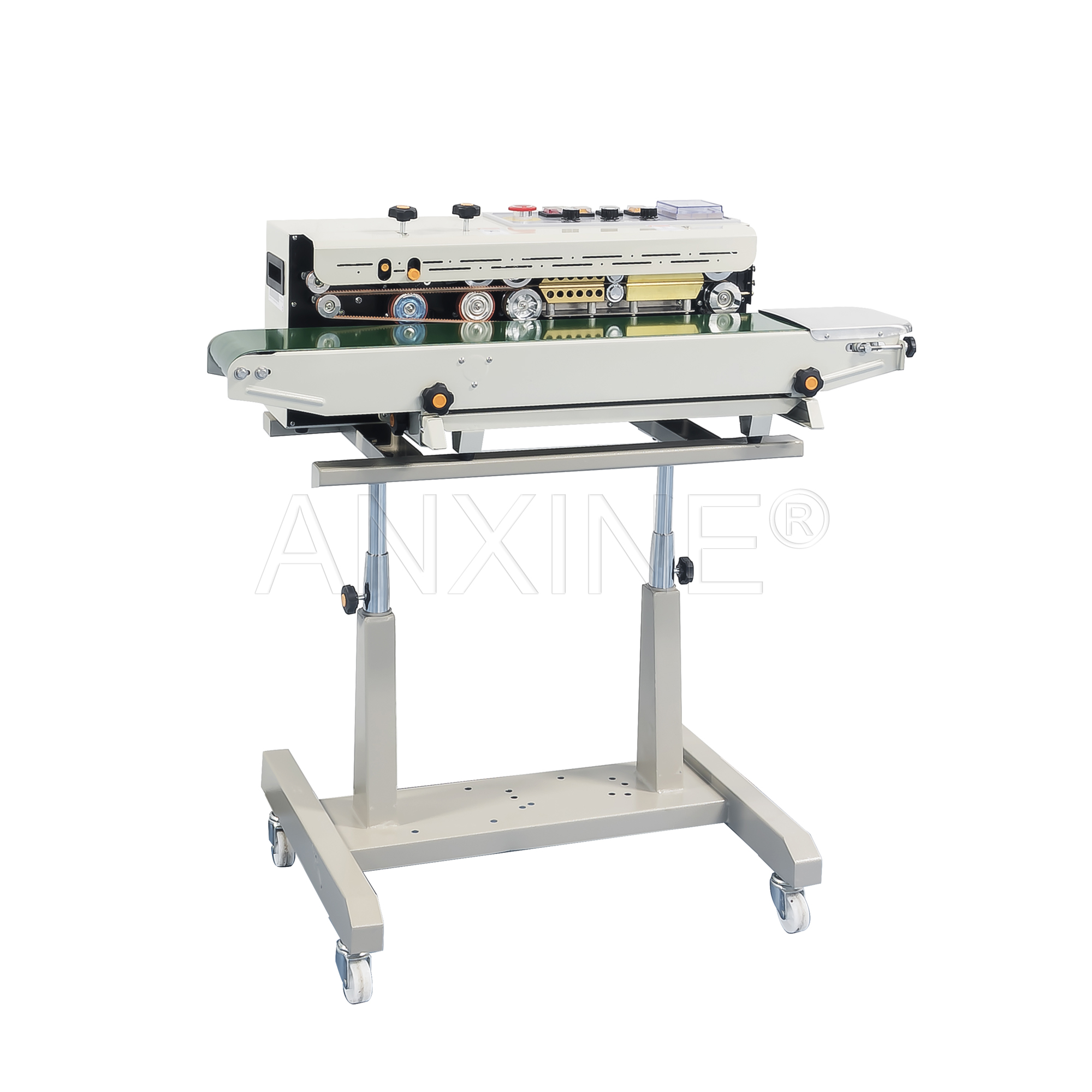

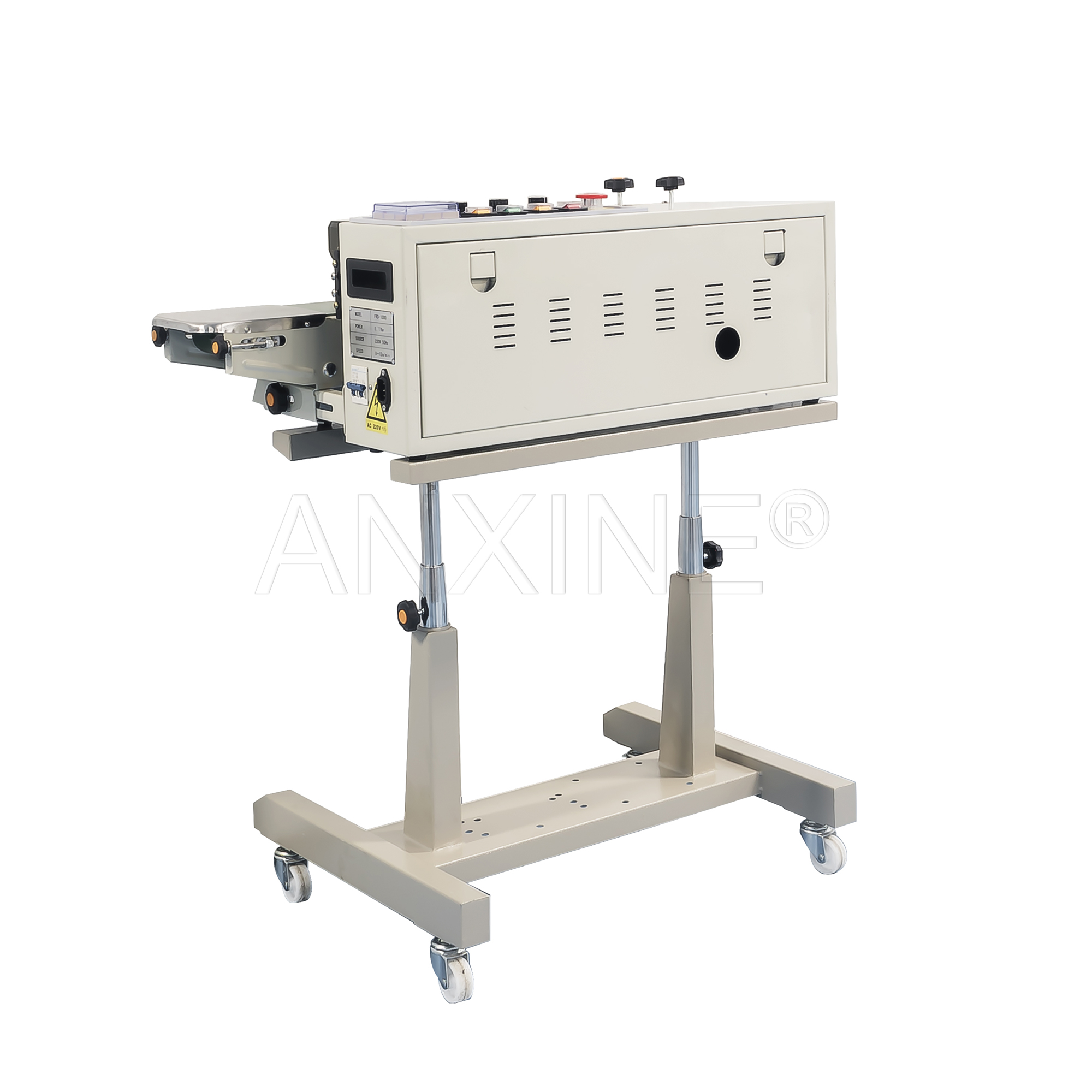

Multi-function Ink Wheel Printing and Sealing Machine FRD-1000
Multi-function Ink Wheel Printing and Sealing Machine FRD-1000
The FRD-1000 is designed to seal package bags made from a wide variety of films such as plastic film, aluminum foil, and composite films. Its integrated solid-ink system can simultaneously print the manufacturing date, batch number, and expiry date onto the bag, making it a popular choice in the pharmaceutical, food and dairy packaging industries.
Adopting an electronic thermostat control unit and step-less speed-regulating transmission mechanism, this machine can handle sealing tasks for various plastic film bags derived from different materials, and can be easily integrated into diverse packaging production lines. Importantly, there are no limitations on sealing length. The FRD-1000 excels in continuous sealing, providing reliable sealing quality and a combination of rational structure and convenient operation.
After being sealed and packaged with this machine, products are sure to impress with their aesthetic appearance, cleanliness, and superior protection features – dust-proof, moisture-proof, and breakage-resistant. Easy to handle and store, this machine brings a drastic reduction in product loss and offers significant cost advantages in packaging.
The FRD-1000 multifunctional printing and sealing machine is designed for demanding application environments and is suitable for multiple industries such as food, medicine, chemicals, daily necessities and seeds. This machine is highly automated and can complete the conveying and sealing operations in one go, supporting continuous work, greatly improving production efficiency and reducing labor costs. In addition, the machine is equipped with heating blocks and cooling blocks made of pure copper to ensure uniform heating and cooling effects, thereby providing high-quality sealing quality.
Highlighted Features
- Highly automated: Achieve one-time conveying and sealing process, with automatic continuous sealing function.
- Widely used: Suitable for packaging needs of multiple industries, including but not limited to food, medicine, etc.
- High-quality sealing: Firm sealing, clear ink printing, suitable for packaging materials of different thicknesses.
- Temperature control: Equipped with a temperature controller, it can accurately control the temperature range from 0 to 300°C.
- Stable performance: Stable structure, low failure rate, long service life, and support long-term continuous operation.
- Beautiful packaging: Provide clean, dust-proof, moisture-proof, damage-proof and beautiful packaging for finished products to reduce product loss.
| Model | FRD-1000 |
|---|---|
| Sealing Width | 6-12mm |
| Sealing Length | Limitless |
| Sealing Speed | 0-12m/min |
| Printing type | Steel wheel printing |
| Conveyor Load | Maximum of 3kg |
| Temperature Range | 0~300°C |
| Power | 750W |
| Voltage | 220V 50HZ/110V 60HZ |
| Machine Size | 908 x 390 x 290 mm |
| Weight | 27kg |
