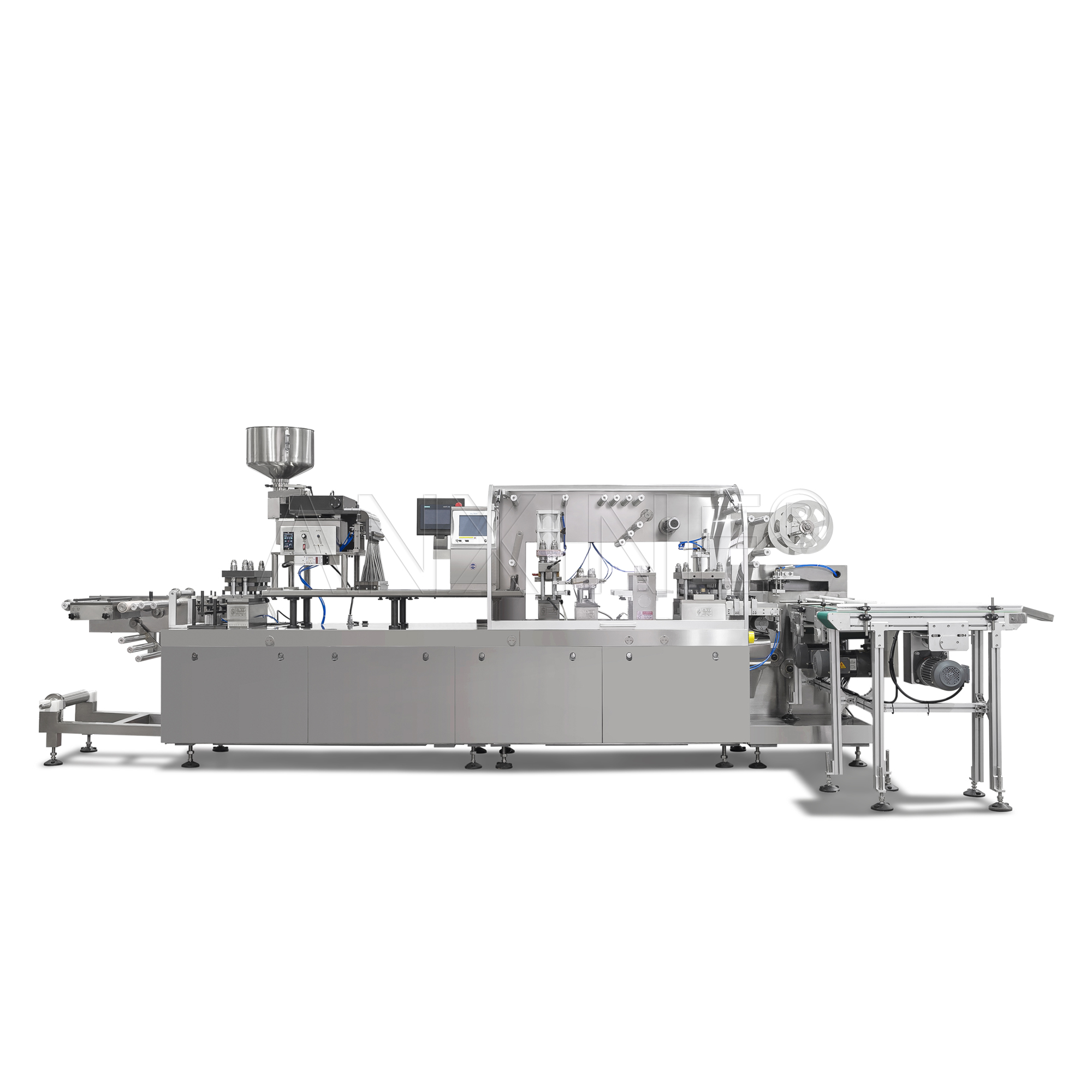

Blister Packing Machine DPP-250
Blister Packing Machine for Efficient Packaging Solutions DPP-250
The DPP-250 blister packaging machine is an advanced flat-bed blister packaging system designed for the packaging of pharmaceuticals, foods and electronic components in Alu-PVC and Alu-Alu materials. This machine is ideal for use in hospital dosage rooms, laboratories and small and medium-sized pharmaceutical factories. It is easy to operate, versatile and durable.
The DPP-250 integrates multiple functions such as PVC feeding, thermoforming, PTP feeding, sealing, and uses positive pressure forming and flat-bed hot-pressing sealing technology to ensure smooth and uniform blister sheets. In addition, the machine is equipped with advanced features such as pre-cut detection, printed mark alignment and automatic feeding system to improve efficiency and precision to meet the needs of high-quality packaging. By integrating these advanced technologies, the DPP-250 provides excellent packaging solutions while ensuring efficient operation to adapt to a variety of production needs.
The DPP-250 Blister Packing Machine is a state-of-the-art flat-plate blister packaging system, perfect for Alu-PVC and Alu-Alu packaging of pharmaceuticals, foods, and electronic components. Tailored for hospital dosage rooms, laboratories, and small to medium-sized pharmaceutical factories, it offers ease of operation, multifunctionality, and long-lasting durability.
Highlighted Features
- Modular Design: Easily disassembled for transport, with straightforward assembly using cylindrical pins and screws.

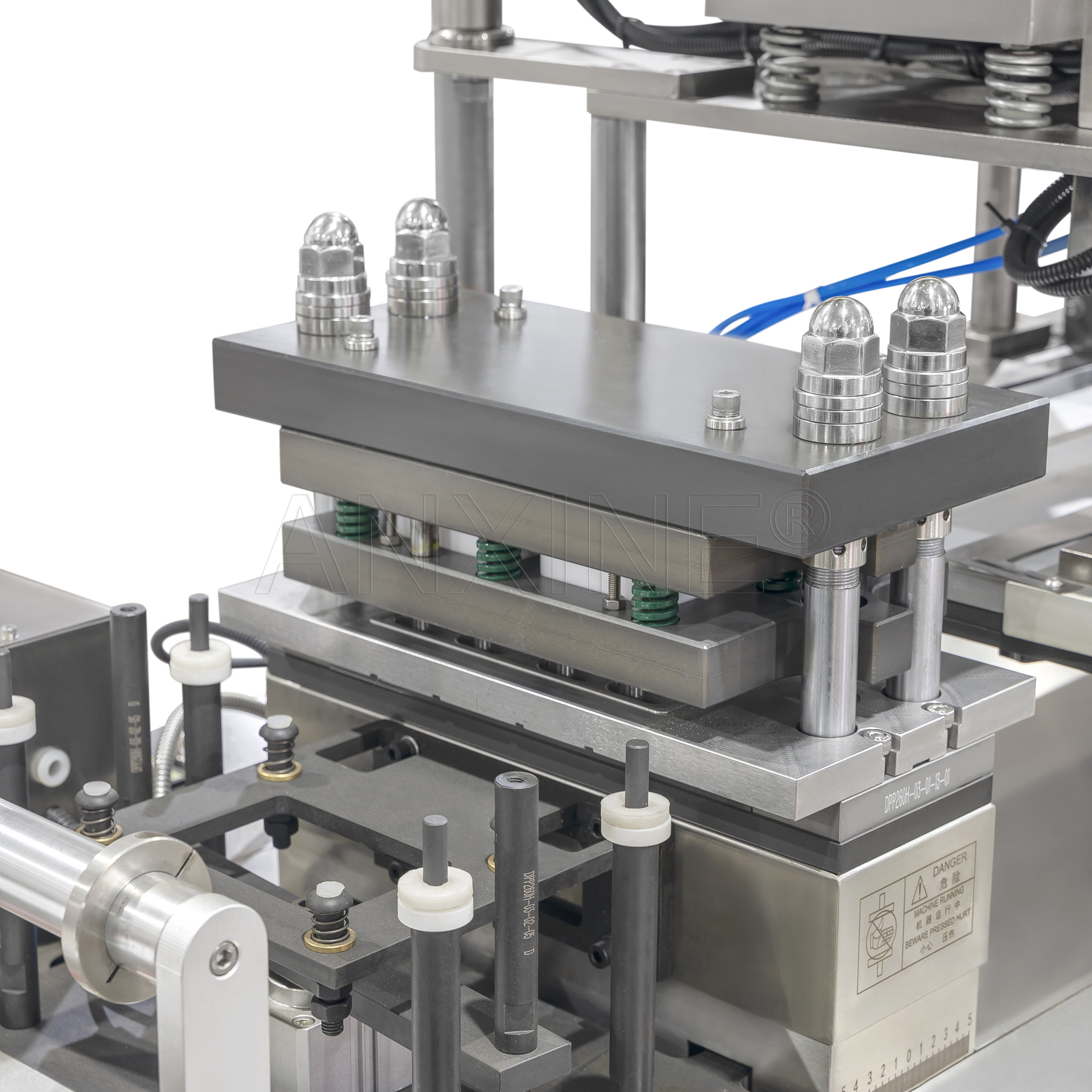

- Convenient Mold System: Molds are pressed and clamped for simple assembly and disassembly.
- Variable Speed Control: Main motor with frequency speed control; up to 50 blanking times per minute.
- Precision Traction: Mechanical arm clamping ensures stable operation and precise synchronization.
- Adjustable Stroke Length: Stroke can be adjusted between 30-120 mm for flexible plate sizing.
- Energy Efficiency: Automatic heating plate control reduces energy use and material waste.
- Enhanced Life Span: Heat seal station with a cylinder aids in avoiding deformation and cleaning, while also buffering overpressure.
- Improved Sealing: Upper and lower chequered stripes enhance sealing performance.
- Safety Features: Automatic shutdown and alarm if PVC runs out or breaks, equipped with an emergency stop device.
- GMP Compliance: Constructed with stainless steel and non-toxic materials to meet GMP standards.
| Model | DPP-250 |
|---|---|
| Cutting Frequency | 10-50 times/min |
| Capacity | 9600 strips/hour |
| Max Shaping Areas and Depth | Alu-Alu: 240×150×18mm Alu-Pvc: 240×150×27mm (Special model can be 47mm) |
| Travel Range | 40-160 mm (extendable to 180 mm as needed) |
| Standard Plate | 80×57 mm (customizable) |
| Air Pressure | 0.4-0.6 Mpa |
| Power Supply | 380V/220V 50Hz 6.2 kW |
| PVC Hard Pieces | 0.15-0.5×260 mm |
| PTP Aluminum Foil | 0.02-0.035×260 mm |
| Dialysis Paper | 50-100 g×260 mm |
| Mould Cooling | Tap or back water |
| Dimensions | 3000×730×1600 mm |
| Weight | 1600 kg |
Also Offer
Explore cutting-edge pharmaceutical and packaging machinery with Anxine. Our offerings include state-of-the-art equipment for capsule filling and blister packing, supported by expert custom solutions and a robust global service network.
